First Steps |
During the start of vSolution Link by WolfVision, the application searches for available Visualizers and Cynaps on your USB ports, on your RS232 port note and over your LAN port.
If a Visualizer is detected, you are instantly able to capture, save and print pictures from this device. note Also with the built-in virtual remote control most of the Visualizer functions can be controlled. Additional information can be added to the pictures like serial number or personal annotation. There is also a WIA driver provided which allows capturing pictures directly from any graphics program and with the Video Capture Driver a Visualizer can be used as video source for third party applications.
If a Cynap is detected, you are able to administrate and to update the device, further settings can be done by using the web browser.

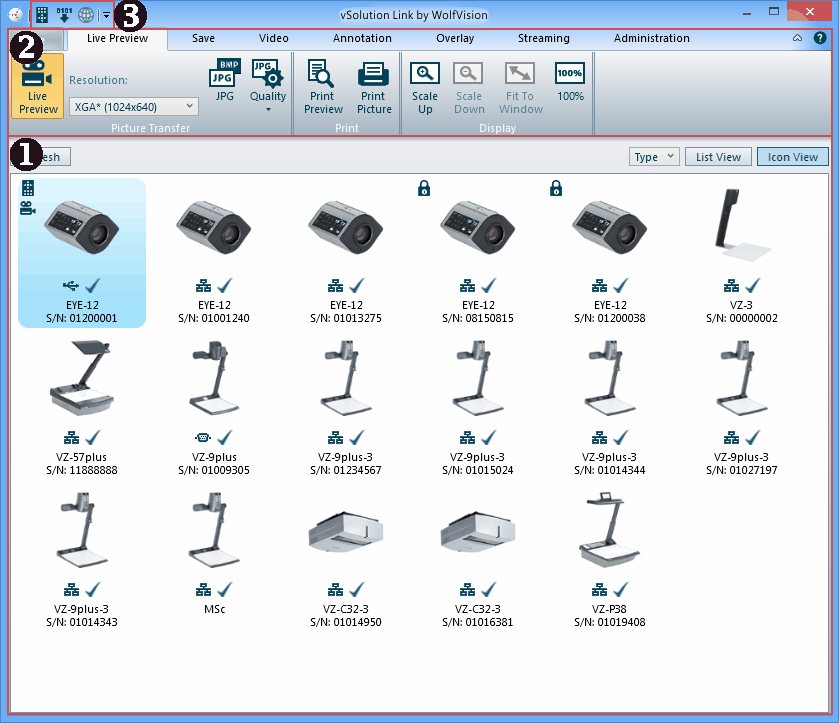

If more than one Visualizer and/or Cynap is connected to the computer, the currently used Visualizer or Cynap is marked with a blue frame. The active device can be changed in the device list (main window) by double clicking onto the desired one.
When the Auto Save function is activated, the application stores pictures automatically on your hard disk every time a specified trigger event occurs.
With the tool bar buttons, you can change settings quickly, annotate the picture start streaming and much more. The available tool bar buttons depends on the selected ribbon tab. With the buttons in the Quick Access Toolbar, you can open the virtual remote control to control the Visualizer.
For easier usage the application will keep its last state and opens the last Live Preview windows on its place when the check box is marked in the "Preferences" dialog.
Additionally preferences can be shared to ensure that the software will starts always with the same settings on several computers. additional information
Click onto the item of interest to open the corresponding subject:
To start Live Preview, open remote control, start firmware update, get additional device information, open OSD Menu, open Web Browser or set device description by using the context menu.
Click
to minimize and
expand the Ribbon bar. When the Ribbon buttons are hidden, it will be shown as drop-down menu only.
To change general settings in the "Preferences" dialog box (example Firmware Update settings), check for newer Firmware files, check for Application updates, get information about vSolution Link by WolfVision, open the general help and exit the application.
To start image transfer, change picture quality settings, print captured pictures and change settings for the displayed picture.
Click onto the item of interest to open the corresponding subject.
To save captured pictures, change picture file format and open a Explorer window.
Click onto the item of interest to open the corresponding subject.
To save videos, change video codec settings and open a Explorer window.
Click onto the item of interest to open the corresponding subject.
To annotate and mark areas on the captured picture.
Click onto the item of interest to open the corresponding subject.
To add overlay text information to the saved pictures and videos.
Click onto the item of interest to open the corresponding subject.
To stream captured pictures through the network.
Click onto the item of interest to open the corresponding subject.
To get status information, change Visualizer menu settings and to power off all listed Visualizers.
Click onto the item of interest to open the corresponding subject:
To open the virtual remote control.
To start firmware update on selected Visualizers or Cynap.
To start your web browser with the URL (IP-address) of the selected Visualizer or Cynap.
To change availability of the listed functions.
